Description
Overview

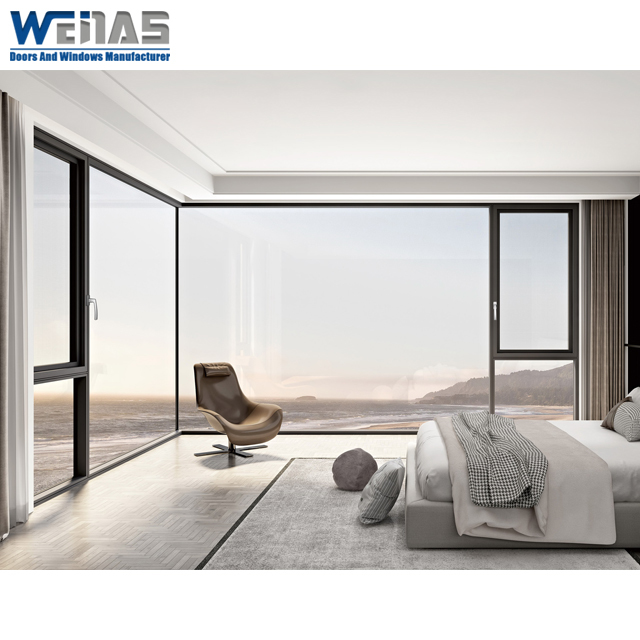

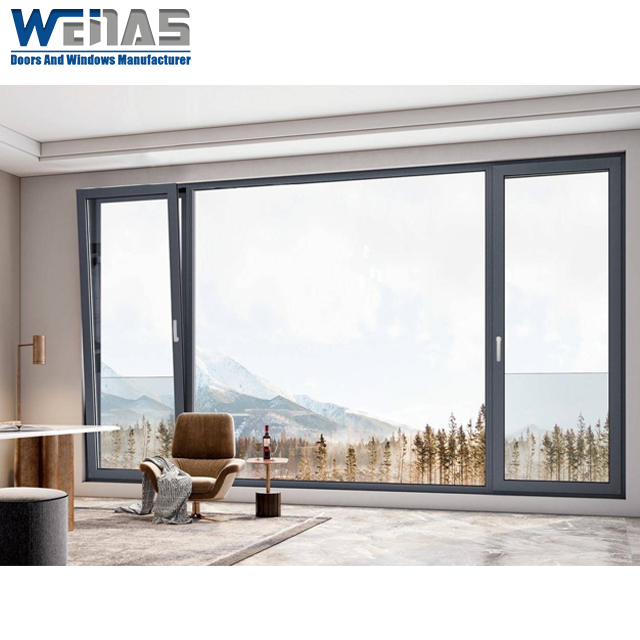

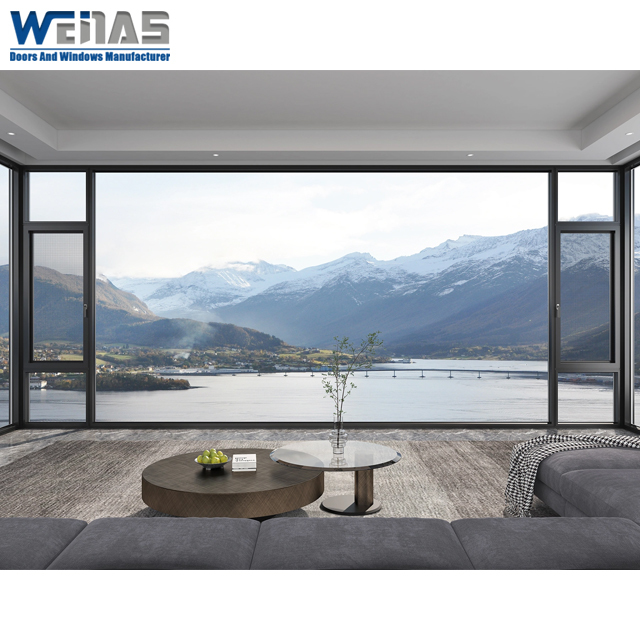

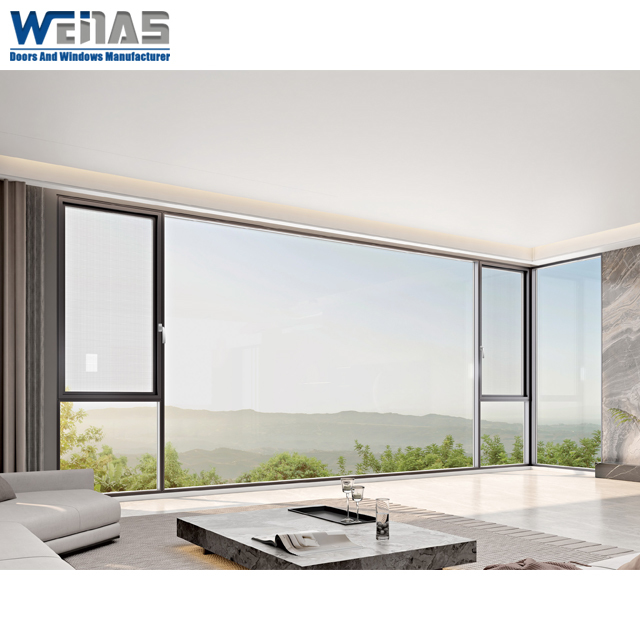

The Weishang 110 series thermal‑break system window is engineered for overseas export as well as residential and commercial building projects. It adopts 2.0‑mm thick aluminium profile to achieve outstanding structural rigidity and strong wind‑pressure resistance. This thermal‑break aluminium window system supports a wide range of opening configurations, covering fixed window, casement window, top‑hung window and outward opening top‑hung window; window‑style door can be supplied on special request. Insect screen comes as standard for this model. Flexible custom‑made service is available for different project requirements to meet diversified site conditions.
Robust & Stable Structure
This Weishang 110‑series thermal‑break system window comes with new national‑standard 2.0 mm aluminium profile. Thickened aluminium frame construction delivers excellent structural stiffness for large‑size window sashes. Precision corner joint processing ensures tight frame assembly for long‑time stable operation.
Flexible Glazing
Standard glass configuration is 5mm+20A+5mm tempered insulated glass. Optional glass choices include 6mm+18A+6mm tempered insulated glass，8mm+15A+8mm tempered insulated glass， 10mm+15A+10mm and 12mm+15A+12mm tempered insulated glass. Special glass specifications can be customized upon request, all glass complies with international tempered‑glass safety standards.
Hardware & Security
Adopt German Rehaman branded hardware as standard fitting. Pre‑installed functional hardware guarantees smooth opening and closing motion. Pre‑assembly and full factory testing deliver reliable air‑tightness and water‑tightness for residential buildings.
Colour & Customization
Powder‑coat surface finish features UV‑resistance, anti‑corrosion and scratch‑proof performance for outdoor application. Standard interior‑exterior colours: Textured Grey, Starry Coffee, Munich Grey, Ceramic Grey. Bespoke sizes and custom powder‑coat colours are available per project design.
Direct Factory Supply, Custom Production
All aluminium windows are custom‑made based on project drawings and site measurements. As direct manufacturer, Weinas provides competitive factory price and export‑strengthened packaging for sea and air shipment. Distributors, contractors and project buyers can get full‑cycle service from drawing confirmation to shipment, with long‑term warranty and after‑sales support.
| Item | Details |
|---|---|
| Profile Thickness | 2.0mm Aluminium Profile |
| Standard Glazing | Standard:5mm+20A+5mm Tempered Insulated Glass; Optional:6mm+18A+6mm / 8mm+15A+8mm Tempered Insulated Glass;10mm+15A+10mm /12mm+15A+12mm Tempered Insulated Glass |
| Hardware | Standard: German Rehaman Hardware |
| Surface Finish | Powder Coating, interior & exterior same colour |
| Operation Type | Fixed / Casement / Top‑Hung / Outward Opening Top‑Hung, Window‑Style Door available |
Contact us today with your opening dimensions. Our engineering team will prepare window layout drawings and provide a detailed quotation as soon as possible.
