Description

Overview

Weinas 90 Series Ouboni Thermal‑Break Aluminium System Window is a premium energy‑saving system window designed and produced for global residential, villa, apartment and commercial construction projects. Built with mature thermal‑break profile structure complying with new national standard, this window integrates advanced thermal insulation, air sealing, waterproofing and noise reduction technology. Equipped with standard fitted insect screen, it delivers maximum natural daylight while maintaining stable indoor temperature throughout all seasons. With exquisite appearance, solid structural performance and long‑term durability, this system window is ideal for modern architectural styles and meets strict international energy‑saving and weather‑resistance standards.

Robust & Stable Structure
The entire window frame is constructed with new‑national‑standard 1.8mm high‑purity aluminum alloy profiles, featuring uniform texture, high structural hardness, strong toughness and excellent deformation resistance. The thickened integrated frame design greatly improves wind pressure resistance, making it adaptable to coastal windy areas, high‑rise buildings and harsh outdoor environments. Equipped with standard thermal break strips, the window completely separates the internal and external aluminum structures, cutting off thermal conduction efficiently. In summer, it blocks outdoor high‑temperature heat radiation; in winter, it locks indoor heating indoors, significantly reducing air conditioning and heating energy consumption and achieving long‑term stable energy‑saving effects.

Flexible Glazing

Standard 5mm+20A+5mm clear tempered insulated glass is adopted for this window model. Optional glass specifications: 6mm+18A+6mm, 8mm+15A+8mm, 10mm+15A+10mm, 5mm+12A+5mm+12A+5mm. Special glass specifications can be discussed upon special project request, all glass complies with international tempered‑glass safety standards.

Operation Types

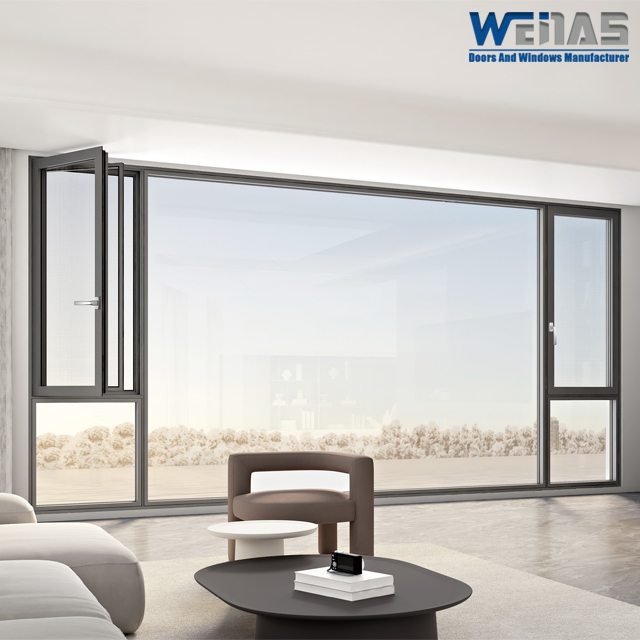

It supports fixed window, casement window, inward‑opening window, top‑hung window, inward tilt‑and‑turn window and outward top‑hung window.

Hardware & Security

Adopts German Winkhaus functional hardware pre‑installed for smooth opening and closing. Pre‑assembly and full factory testing guarantee acceptable air‑tightness and water‑tightness for general‑purpose buildings. Insect screen is included as standard configuration.

Colour & Customization

Powder‑coat surface finish features UV‑resistance, anti‑corrosion and scratch‑proof performance for outdoor application. Standard colours include Ceramic Grey, Munich Black and Metallic Coffee. Bespoke sizes and custom powder‑coat colours are available per project design.

Direct Factory Supply, Custom Production

All aluminium system windows are custom‑made based on project drawings and site measurements. As direct manufacturer, Weinas provides competitive factory price and export‑strengthened packaging for sea and air shipment. Distributors, contractors and project buyers can get full‑cycle service from drawing confirmation to shipment, with long‑term warranty and after‑sales support.

Contact us today with your opening dimensions. Our engineering team will prepare window layout drawings and provide a detailed quotation as soon as possible.
